Bluesun Mono 210 Half Cell Original Shingled Solar Panel 700W 550W Solar Panels Film on Roof 415W 425W

品牌 : BLUESUN

型号 : BSM700PMB6-69SDC

原产地 : Anhui, China

电池片尺寸 : 210mmx210mm

面板尺寸 : 2355*1303*35mm

组件效率 : 21.6%

Cell Type : Monocrystalline

Cell Dimensions : 210*210mm

Weight : 38.5kg

Cable Length : Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size : TUV: 4mm (0.006inches )/UL: 12AWG

Module Dimensions : 2355*1303*35mm

Packing Configuration : 31pcs/carton, 558pcs/40hq

Frame : Anodized Aluminium Alloy

Efficiency : 21.6%

Junction Box : IP68

Contact Now

Products Description

Bluesun Mono 210 Half Cell Original Shingled Solar Panel 700W 550W Solar Panels Film on Roof 415W 425W

Product Parameters

SPECIFICATIONS
Module Type	BSM675PMB6-69SDC	BSM680PMB6-69SDC	BSM685PMB6-69SDC	BSM690PMB6-69SDC	BSM695PMB6-69SDC	BSM700PMB6-69SDC
	STC	STC	STC	STC	STC	STC
Maximum Power	675	680	685	690	695	700
Operating Voltage (Vmpp/V)	39.20	39.30	39.40	39.50	39.60	39.70
Operating Current (Impp/A)	17.23	17.32	17.41	17.49	17.57	17.65
Open-Circuit Voltage (Voc/V)	47.20	47.30	47.40	47.50	47.60	47.70
Short-Circuit Current (Isc/A)	18.32	18.41	18.50	18.59	18.68	18.77
Module Efficiency n（%）	21.90	22.10	22.30	22.50	22.60	22.80
STC: Irradiance 1000W/㎡ , Cell Temperature 25°C, Air Mass AM1.5 NMOT: Irradiance at 800W/㎡ , Ambient Temperature 20°C, Air Mass AM1.5, Wind Speed 1m/s
More details please send Inquiry to us

Advantages Of Shingled Panel

* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.

Certificate

Projects

Packing & Delivery

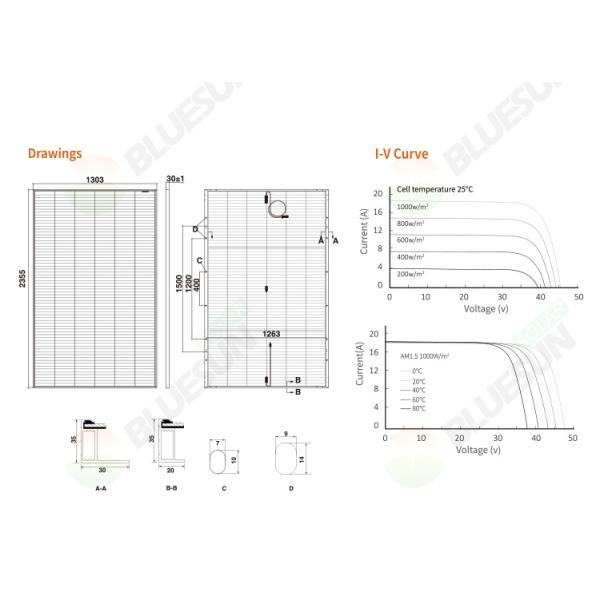

Bluesun Mono 210 Half Cell Original Shingled Solar Panel 700W 550W Solar Panels Film on Roof 415W 425W Images
